THERMAL PAPER ROLL PACKING MACHINE LINE

JRX-BZ THERMAL PAPER PACKING MACHINE LINE

ONE LINE, ENDLESS PACKAGING POSSIBILITIES.

JRX-BZ Thermal Paper Packaging Machine Line is a fully integrated, high-performance solution designed to meet the diverse packaging needs of modern paper manufacturers. Built with precision and adaptability in mind, this production line supports a wide range of packaging styles — including aluminum foil wrapping, single or dual-color printed packaging, and shrink film sealing — ensuring your products are not only well-protected but also visually appealing.
Equipped with advanced PLC control and servo-driven mechanisms, the line offers seamless operation, from slitting and core loading to breaking, flattening, and final packaging. Whether you're packaging thermal paper rolls for retail, logistics, or industrial use, the JRX-BZ line delivers consistency, speed, and flexibility.

Display

Parameters

Specifications

FAQ

Control System	PLC-controlled with touch screen interface; servo-driven mechanisms for precision automation
Production Speed	Slitting/Rewinding: 150–180 M/min
	Breaking/Flattening: ≤120 rolls/min
	Packaging (Foil/Shrink): 15–30 rolls/min
Roll Compatibility	Paper roll diameter: 35–85 mm (breaking)
	Max. jumbo roll diameter: 1200 mm (slitting)
	Rewinding diameter: ≤180 mm
Slitting Capability	Minimum slit width: 20 mm
Slitting Capability	Machine width options: 650 / 910 / 1250 mm
Packaging Options	Aluminum foil wrapping, single/dual-color printed packaging, shrink film sealing (PE/POF compatible)
Power Supply	220V or 380V / 50Hz, depending on component
Power Supply	Typical power: 0.7–2.2 KW per unit
Weight & Build	Machine weights: 250–1500 kg (robust industrial construction)
Automation Features	Automatic jumbo roll loading, tension control, tube feeding, counting, unmanned operation capability in shrink wrapping

KEY COMPONENTS

1-JRX-FQ SLITTER AND REWINDER

2-JRX-BP BREAKING AND FLATTING MACHINE

OPTIONAL COMPONENTS

3-JRX-CQ AUTOMATIC CORE LOADER

4-JRX-BZ-A ALUMINUM FOIL PACKING MACHINE

5-JRX-BZ-R SHRINK WRAPPING MACHIN

Configurations Overview

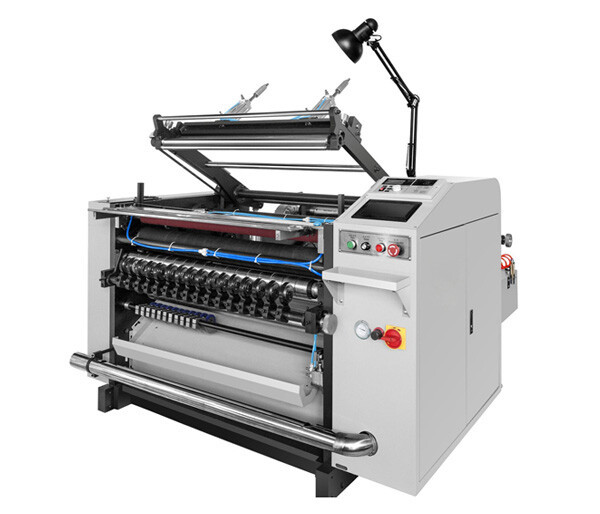

1-JRX-FQ SLITTER AND REWINDER

Machine Width	650/910/1250 MM	Key Features: • Banana roller for bite-free slitting • Automatic jumbo roll loading with air shaft • Stepless frequency regulation & automatic tension control
Paper Roll Diameter	1200 MM Max.
Rewinding Diameter	180 MM Max.
Slitting Width	20 MM Min.
Working Speed	150-180 M/Min
Power	380V/50HZ/2.2KW
Weight	1500 KG

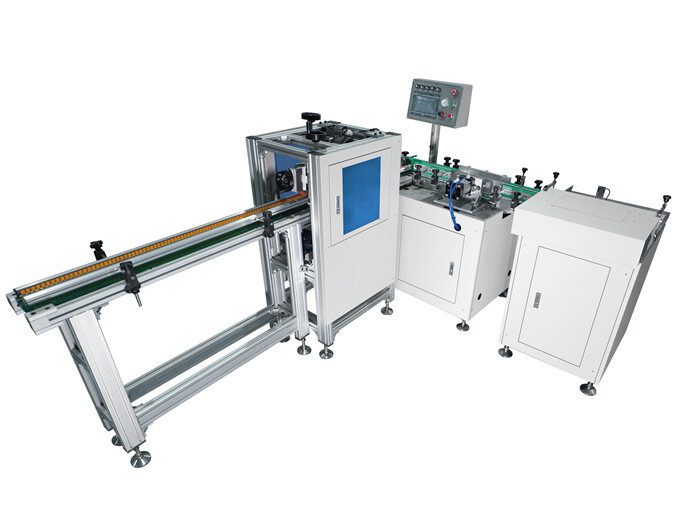

2-JRX-BP Breaking and Flatting Machine

Paper Roll Diameter	35-85 MM	Key Features: • Touch screen PLC control • Adjustable speed and pushing width • Multi-row pushing capability
Paper Roll Width	30-85 MM
Breaking Speed	120 Times/Min Max.
Flat Punching Speed	120 Times/Min Max.
Voltage	220V/50HZ
Weight	600KG

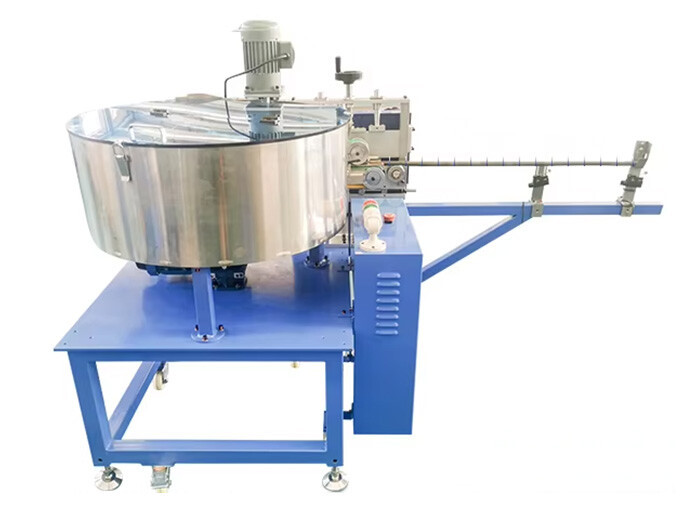

3-JRX-CG AUTOMATIC CORE LOADER

Tube Diameter	12-24 MM	Key Features: • Rotary tube feeding system • Quantity counting function • Compact and energy-efficient
Production Speed	15 Tubes/Min
Power	0.7 KW
Weight	250 KG
Dimensions	100010001200 MM

4-JRX-AL ALUMINUM FOIL PACKING MACHINE

Packing Length	80-320 MM	Key Features: • Fully servo-driven with PLC control • Automatic rolling system for tight packaging • Compatible with aluminum foil,printed paper and shrink film.
Packing Diameter	35-85 MM
Production Speed	15-25 Rolls/Min
Power	380V/50HZ
Dimensions	270013001400 MM
Weight	500 KG

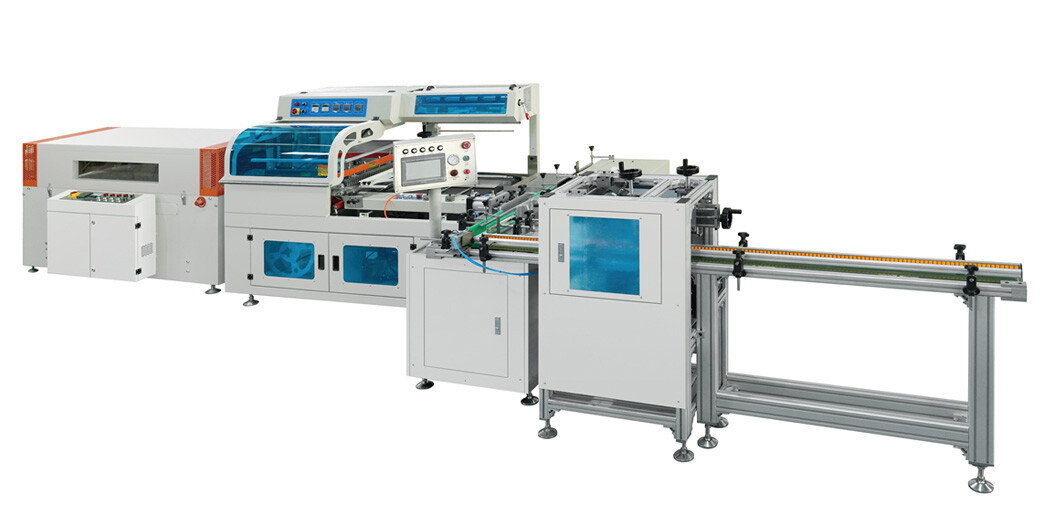

5-JRX-BZ-R SHRINK WRAPPING MACHINE

Package Height	85 MM Max.	Key Features: • Fully automatic three-side sealing and slitting • Compatible with both PE and POF heat-shrink films • Automatic feeding and unmanned operation capacity
Production Capacity	15-30 Bags/Min
Pneumatic Pressure	0.5 Mpa
Power Input	1.5 KW
Sealing Line Dimension	650*550 MM
Machine Weight	600 KG
